Our 201, 304, and 316 stainless steel wire mesh is designed for high-precision filtration, durability, and long-lasting performance. Suitable for industrial, chemical, and food processing applications, it ensures consistent quality and reliability.
| Material | Mesh Size | Micron Size | Wire Diameter | Roll Width |
|---|---|---|---|---|
| 201 SS | 10–200 | 5–120 | 0.02–0.5 mm | 0.5–2 m |
| 304 SS | 10–200 | 5–120 | 0.02–0.5 mm | 0.5–2 m |
| 316 SS | 10–200 | 5–120 | 0.02–0.5 mm | 0.5–2 m |
Plain weave is the most common and widely used weaving method for stainless steel wire mesh. In this structure, each warp wire alternately passes over and under each weft wire, forming a simple and uniform square mesh pattern.
This type of weave provides good stability, accurate mesh openings and a smooth surface. Because of its balanced structure, plain weave mesh is suitable for general filtration and sieving applications.
Features
Typical Applications
Twill weave is produced when each warp wire passes over two weft wires and then under two weft wires. This pattern creates a diagonal structure that allows the mesh to use thicker wires while still maintaining a high mesh count.
Compared with plain weave, twill weave wire mesh offers higher strength and better wear resistance. It is commonly used for heavy-duty filtration or applications that require stronger mesh structures.
Features
Typical Applications

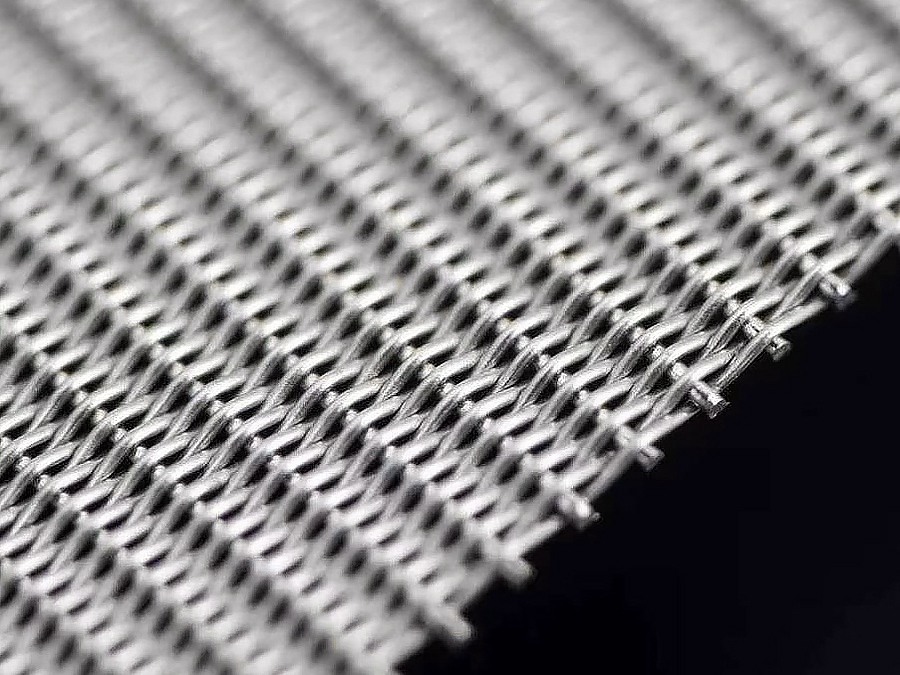

Dutch weave wire mesh is designed specifically for filtration applications. In this weaving structure, the warp wires are relatively thicker while the weft wires are finer and closely spaced, forming a dense filtration layer.
Unlike plain or twill weave meshes, Dutch weave does not form square openings. Instead, it creates a compact structure that offers very high filtration accuracy and excellent particle retention capability.
Features
Typical Applications
High-precision industrial filtration
✔ High filtration precision with uniform mesh openings
✔ Excellent corrosion resistance in chemical environments
✔ Strong mechanical strength and durability
✔ High temperature resistance
✔ Smooth mesh surface for stable filtration performance
✔ Long service life and reusable structure
Custom packaging is also available according to customer requirements.
✔ 30+ years wire mesh manufacturing experience
✔ Professional mining screening mesh production
✔ OEM and customized design service
✔ Fast production and delivery
✔ Exported to South America, Europe and Middle East
Please send us your specification, Our technical team will reply within 12 hours. Including:
✔ Send Your Mesh Specification Now
✔ Get Free Sample Consultation
✔ Customized production available
